Product Description

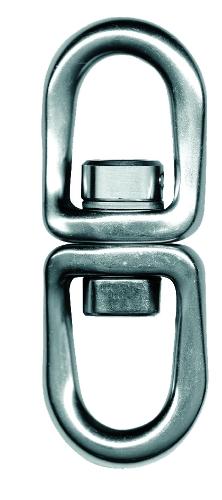

Tylaska 9 1/16" T50 Standard/Standard Bail Swivel
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T50 Std/Std Bail Swivel
Safe Working Load (lb.): 25,000 (11,340kg)
Breaking Strength (lb.): 50,000 (22,680kg)
Weight (oz.): 93.0

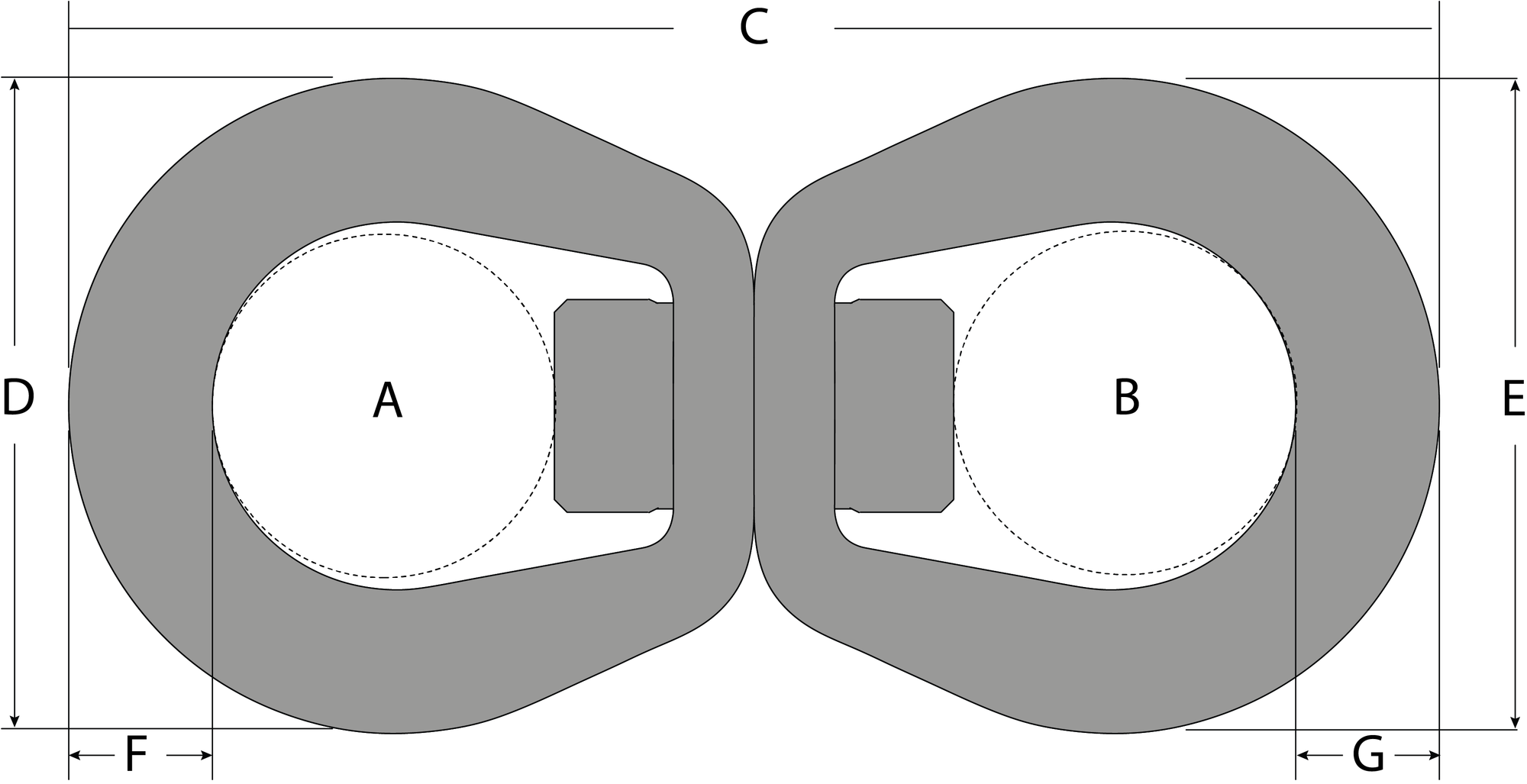

Dimensions:
A (in.): 2.00" (50.8mm)
B (in.): 2.00" (50.8mm)
C (in.): 9.12" (231.7mm)
D (in.): 3.65" (92.7mm)
E (in.): 3.65" (92.7mm)
F(in.): 0.83" (21.1mm)
G(in.): 0.83" (21.1mm)
